If the motor side needs to be changed, this can be done as follows:

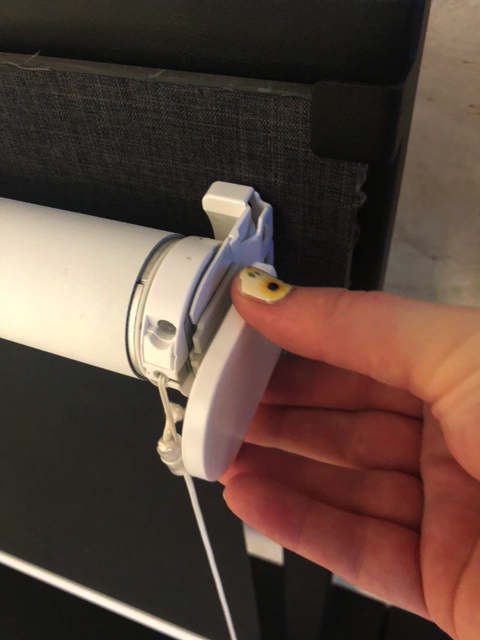

1. Remove the end cap from the side support (on the motor side):

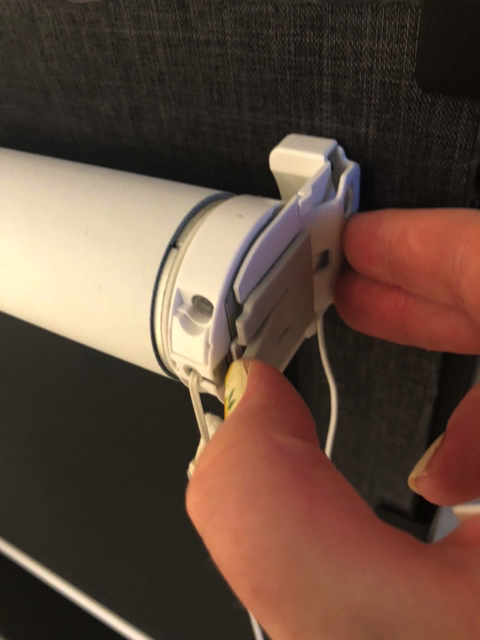

2. Push the gray clamp up slightly, then remove the fabric roll + motor from the side support system:

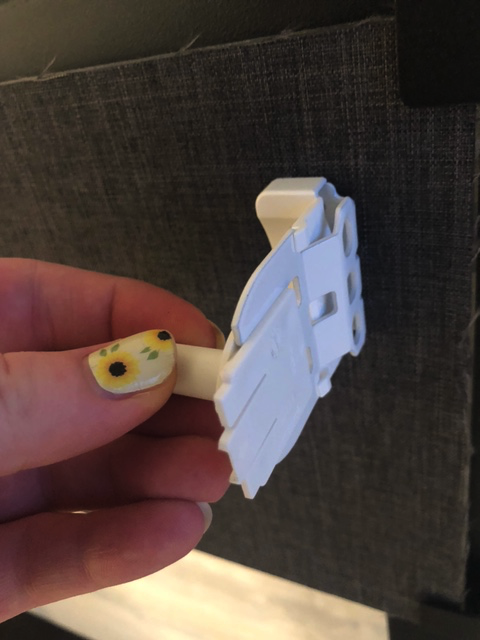

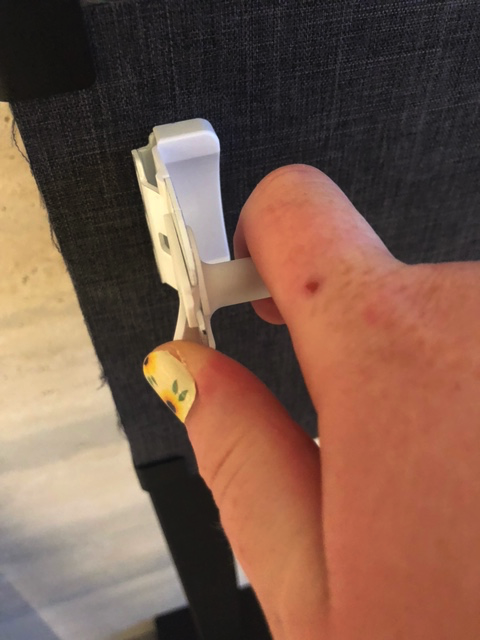

3. Next, remove the bearing pin from the system, this is done by again prying up the back slightly:
.

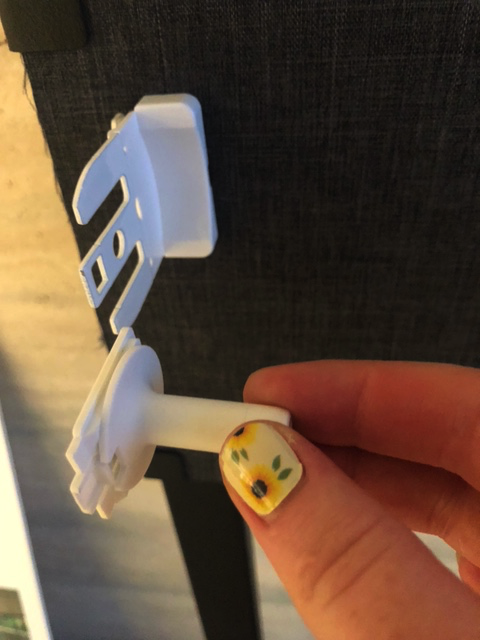

4. Slide the bearing pin into the other side support:

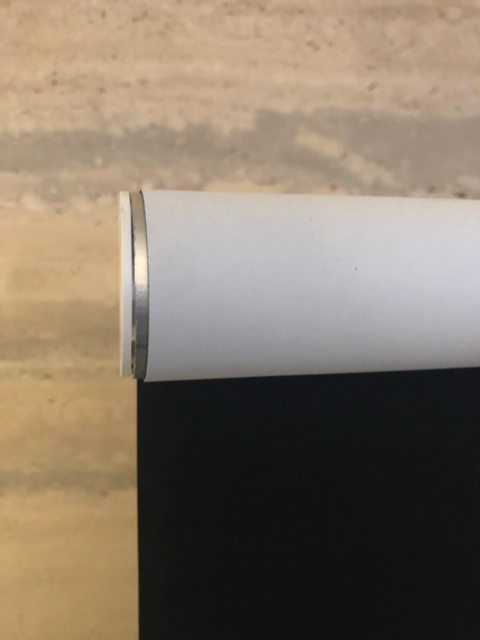

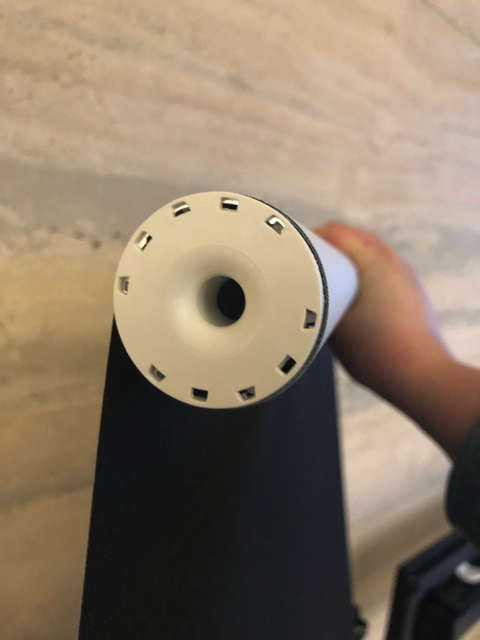

5. Remove the cap from the tube; this can be done with a blunt kitchen knife if necessary. Then push the cap into the other end of the tube:
.

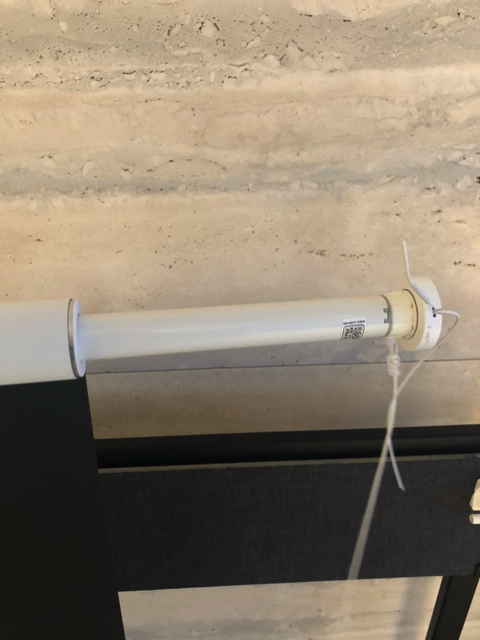

6. Zum Schluss kann der Motor wieder in das Rohr eingesetzt werden. Beachten Sie, dass die Rippen der Krone und des Antriebs in die Schlitze des Rohrs passen müssen.) Die Krone sitzt über dem Motorrohr und der Antrieb sitzt am Ende des Motors. Die Krone ist der Teil an der Vorderseite des Motors und der Antrieb ist der Teil, der auf die Rückseite des Motors geschraubt wird, um die Jalousie zu steuern:

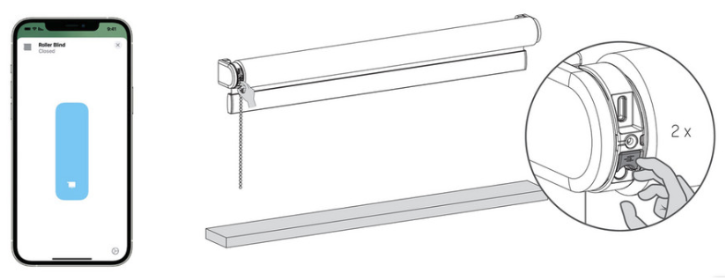

7. As a final step, adjust the direction of rotation of the Smartblind:
To adjust the direction of rotation on the remote control, press the up and down buttons at the same time. The direction of rotation is now reversed.
