Our manual systems are available for four different products; roller blinds, day and night blinds, honeycomb blinds and venetian blinds.
System dimensions
Our manually operated systems have different dimensions. Below, they are listed in a convenient table. Pay close attention to this when measuring your window covering.

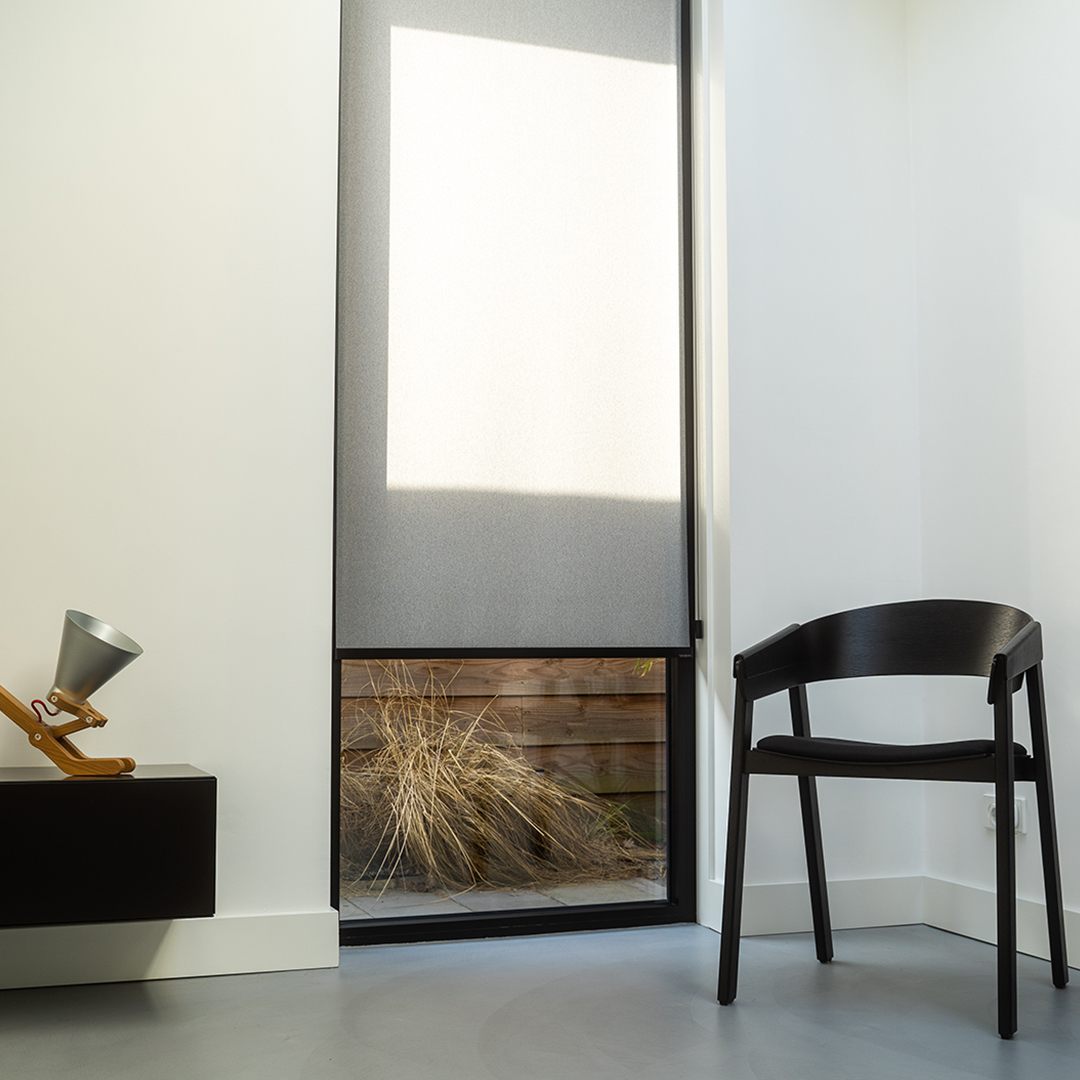

System dimensions (day and night) roller blinds
Side supports small -> 44mm high by 56mm wide
Side supports large -> 61mm high by 78mm wide
Cassette small -> 78mm high by 73mm wide
Cassette large -> 99 mm high by 94 mm wide
The fabric of a roller blind with side supports is 3.6 cm narrower (overall) than the specified width, the fabric of a (duo) roller blind with a cassette is 4.5 cm narrower (overall).

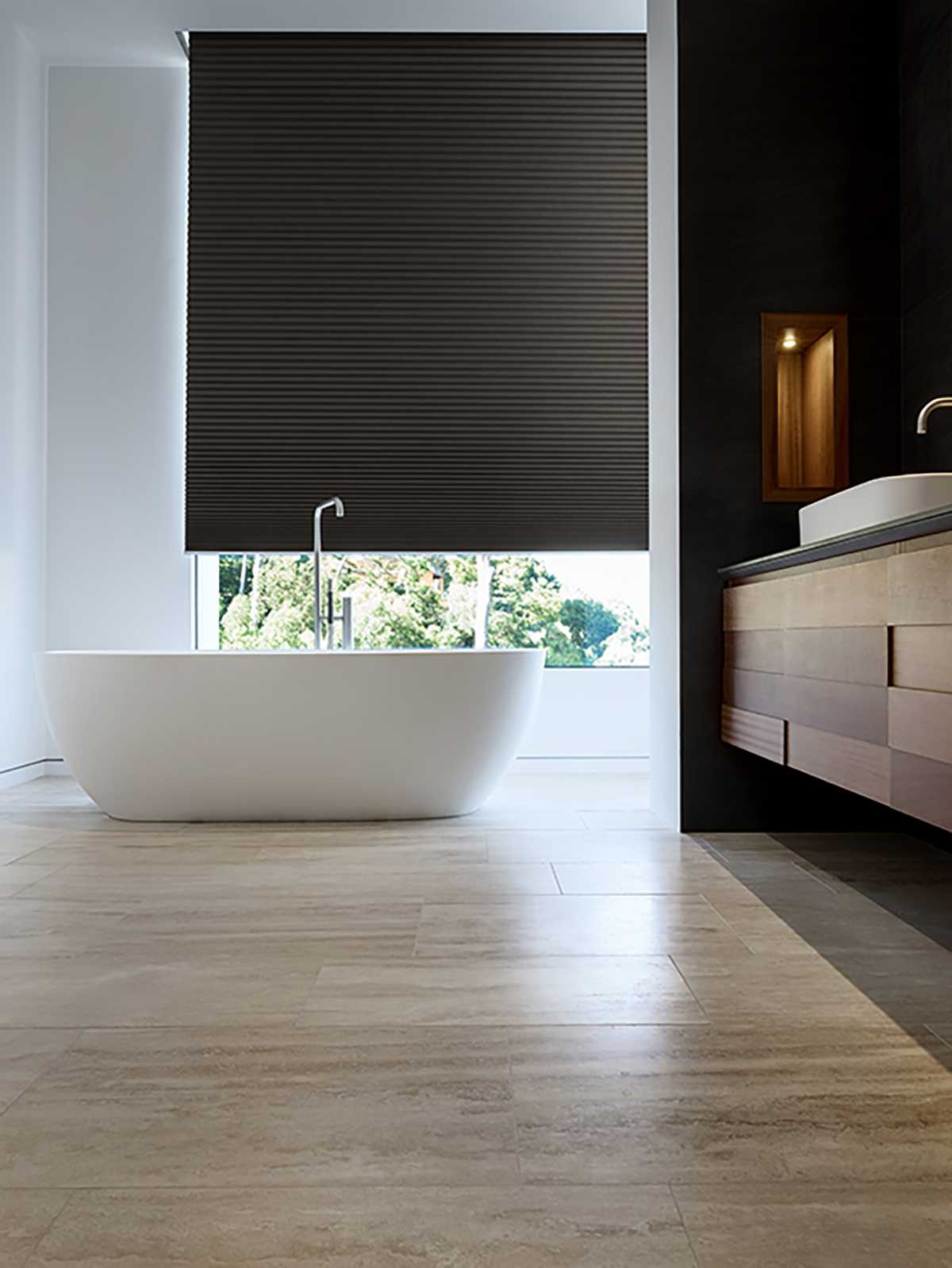

System dimensions honeycomb blinds
The size of the honeycomb system is 4 cm high and 5 cm deep.
| Productheight in cm | Package heigt in cm |
| 50 | 7,8 |
| 100 | 10,3 |
| 150 | 12,8 |
| 200 | 15,3 |
| 250 | 17,8 |
| 300 | 20,3 |
The package height is an indication and may vary slightly from the stated height. If you choose a top down & bottom up system with a cord operation, the package height will be 1,5 cm higher.
System dimensions venetian blinds
The top box of the blind is 7cm by 7cm.
The package height of blinds varies according to the product height. Below are the dimensions in a table.
| Productheight in cm | Packageheight in cm |
| 100 | 16 |
| 150 | 20 |
| 200 | 23 |
| 250 | 27 |
| 300 | 31 |
Minimum and maximum dimensions
Our manual systems have minimum and maximum dimensions. Below are the dimensions for each product. There may still be differences per fabric collection. Our configurator on the website calculates whether your dimensions are suitable for our products.
Roller blind dimensions (small or large system)
Minimum width is 31cm and the maximum width is 250cm
Minimum height is 30cm and maximum height 350cm

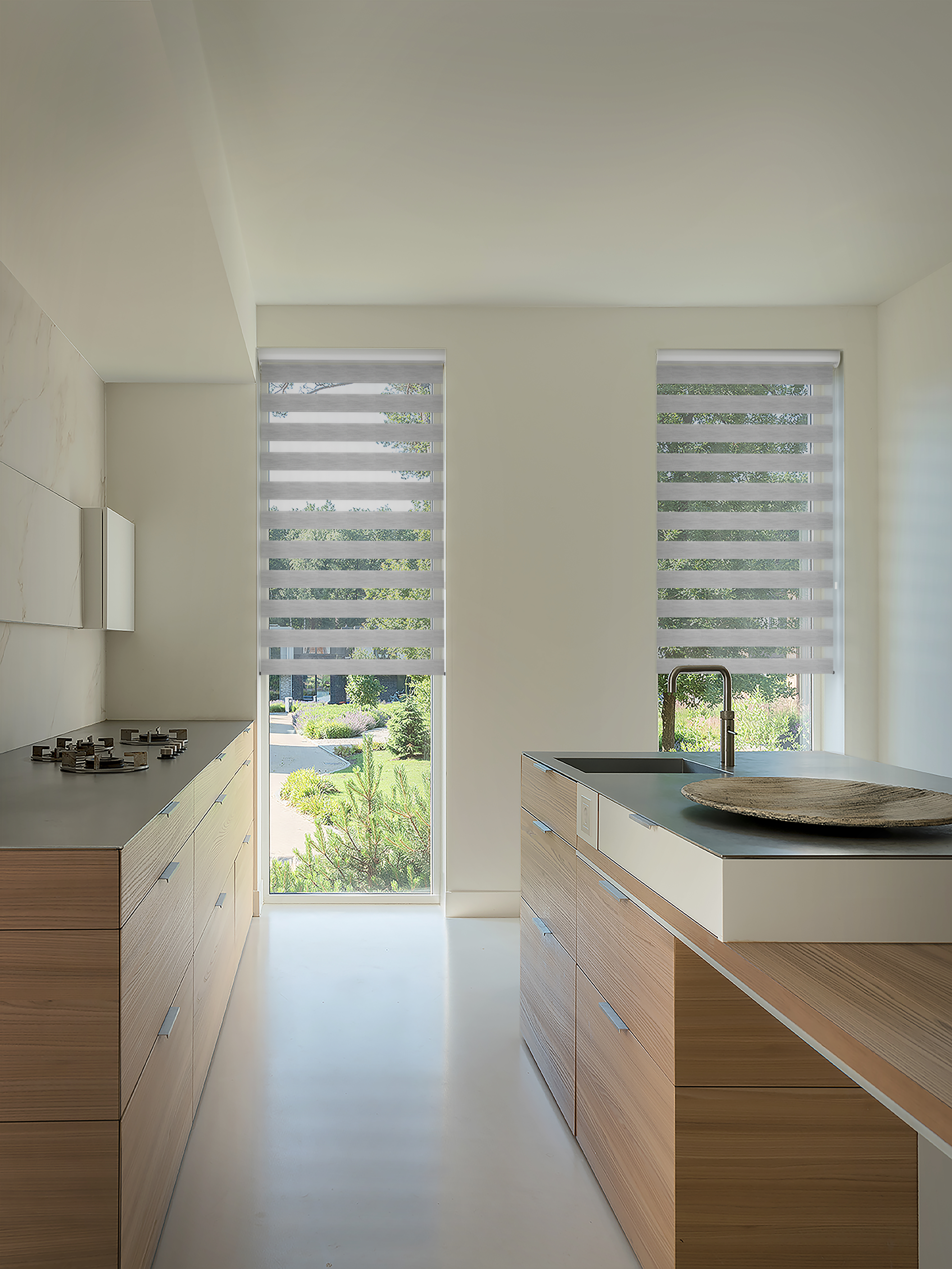

Day and night blind dimensions (small or large system)
Minimum width is 31cm and the maximum width is 240cm
Minimum height is 30cm and maximum height 350cm
Honeycomb blind dimensions Top Down (25+45)
Minimum width is 41cm and maximum width is 250cm
Minimum height is 30cm and maximum height is 250cm
Honeycomb blind dimensions Top Down Bottom Up (25+45)
Minimum width is 61.8cm and maximum width is 250cm
Minimum height is 30cm and maximum height is 250cm
Venetian blinds dimensions
Minimum width is 61cm and maximum width is 240cm
Minimum height is 30cm and maximum height is 280cm
